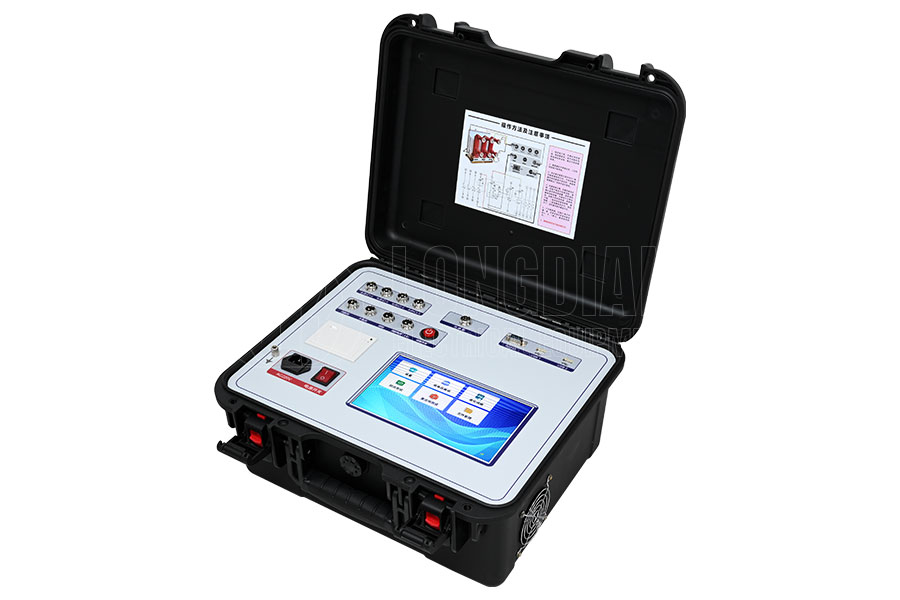

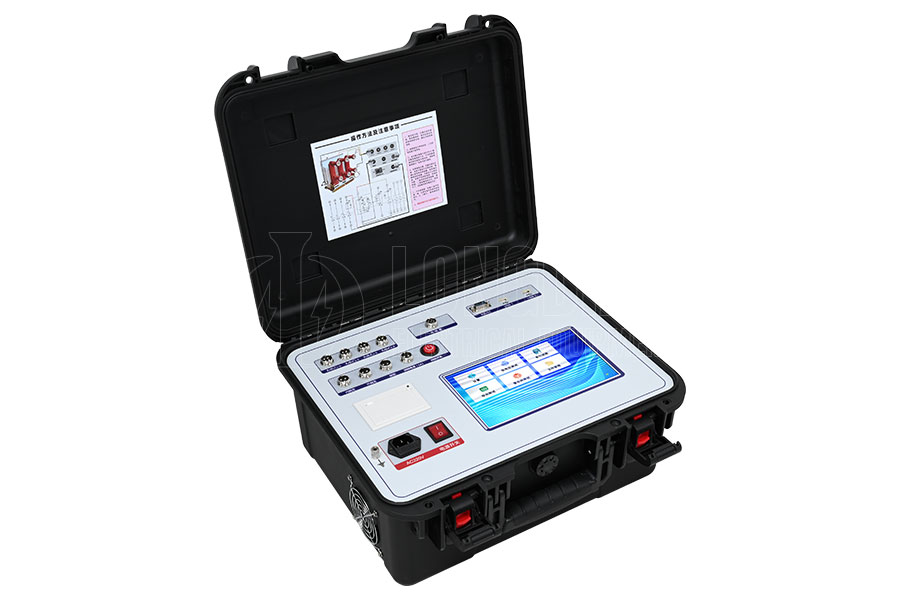

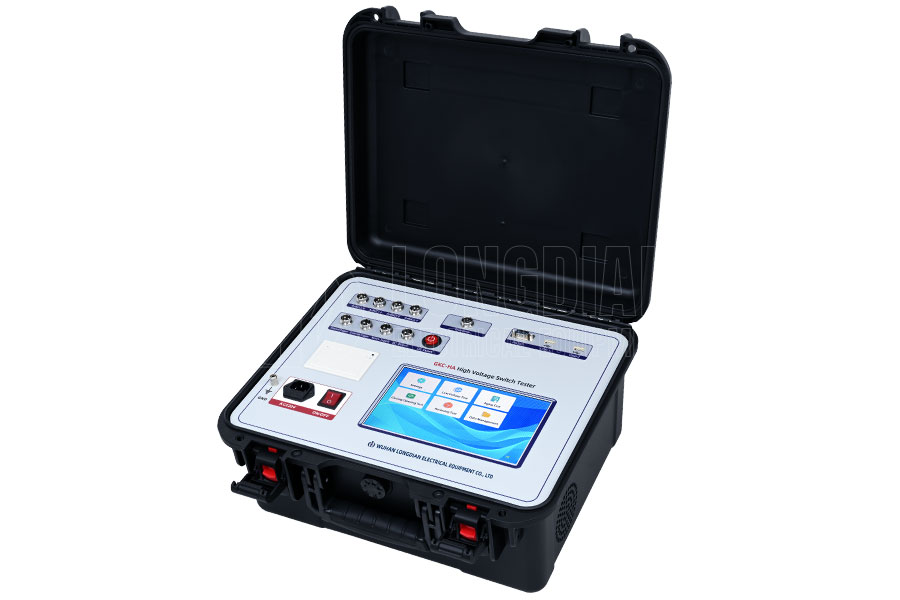

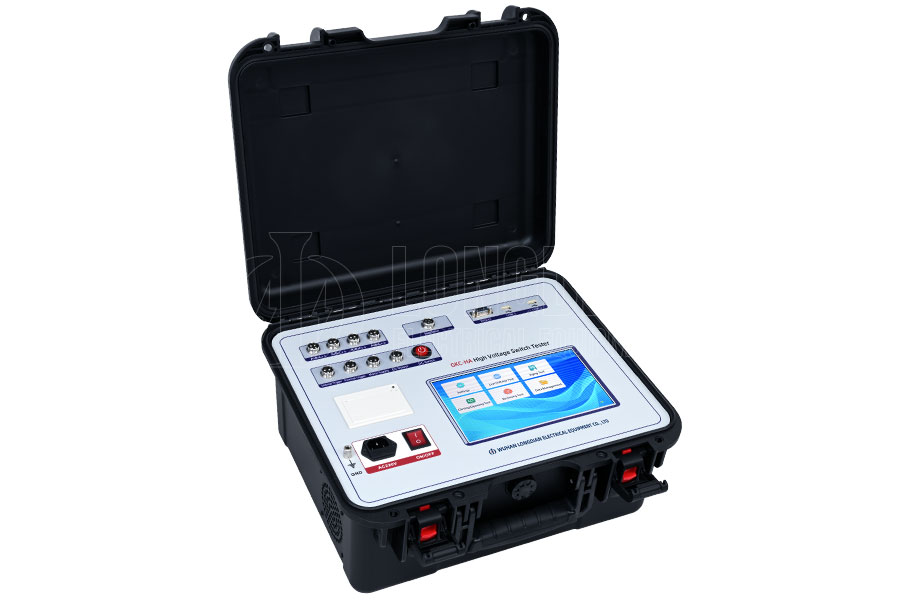

LDGKC-HA High Voltage Switch Characteristics Comprehensive Tester is a high-precision power testing device based on an embedded industrial computer. It is primarily used for testing the mechanical and dynamic characteristic parameters of various high-voltage circuit breakers (such as vacuum, SF6, and low-oil circuit breakers). The instrument has 12-channel break measurement capability, and can simultaneously test key parameters such as closing/opening time, synchronicity, bounce, speed, travel, and coil current. It has a built-in DC 6～270V adjustable operating power supply and supports multiple control modes including internal triggering, external triggering, and manual triggering. Equipped with a 9-inch color touchscreen, high-speed thermal printer, large-capacity storage, and USB interface, it supports data upload to MES, ERP, and other platforms. Suitable for substations, power plants, and other field environments, it features strong anti-interference capabilities, convenient installation, and intelligent operation.
| Time measurement | 12 channels inherent opening (closing) time |
| Different periods in the opening (closing) phase | |
| The difference between opening (closing) phases in different periods | |
| Closing (opening) bounce time (bounce times) | |
| Different period test range: 01ms～99ms, resolution: 0.01ms; | |
| Internal trigger test range: 1ms～999ms, resolution: 0.01ms,1000ms～9999ms, resolution: 0.1ms, 10000ms～200000ms resolution: 1ms. | |
| External trigger test range: 0.01ms～200s | |
| Accuracy rate within 1000ms: 0.05%±0.1ms | |
| Speed measurement range | 0.1mm sensor 0.01 ~ 25.00m/s, Accuracy rate：0.05%±0.1ms |
| 345° Angle sensor 0.01 ~ 25.00m/s,Accuracy rate：0.05%±0.1ms | |
| Laser sensor 0.01 ~ 15.00m/s. | |

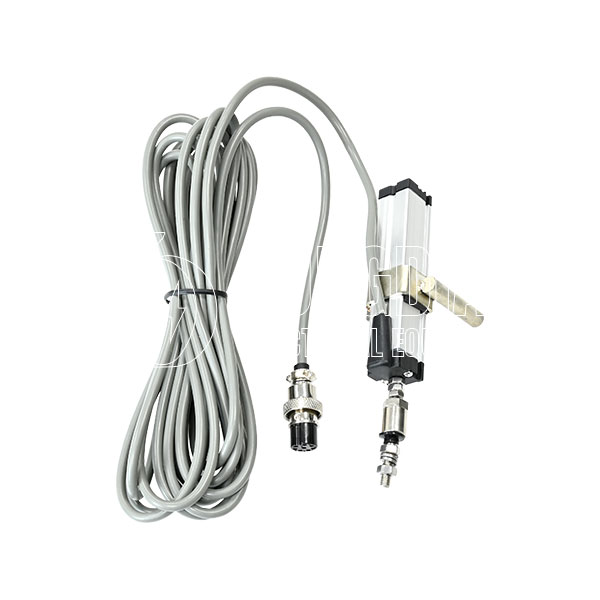

| Stroke measurement range | linear sensor: 50mm, measuring range: 0-50mm, resolution: 0.1mm |

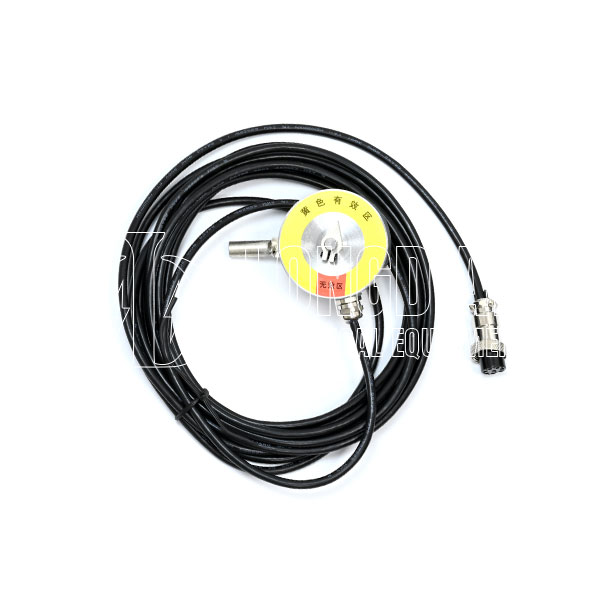

| Rotation sensor: 345°, measuring range: 0-1000mm, resolution: 0.08°. This sensor has an invalid area of 15 degrees, and the effective area of the sensor can be seen on the instrument when it is installed, and the value display is preferably about 160-200 degrees. | |
| Acceleration sensor measuring range: 0-300mm, resolution: 0.1mm. Accuracy rate：土(1%L+0.2)mm | |
| Coil current | maximum current 20A, resolution: 0.01A. Accuracy rate：土5% |
| Measuring range of coil resistance | 0～2000Ω, resolution: 0.01Ω.Accuracy rate：土5% |
| Instrument power supply | AC220V ± 10%; 50Hz ± 10% |
| DC power output | DC6～270V continuously adjustable, DC24V≤15A (short time), DC220V≤20A (short time). |
| External trigger voltage | AC/DC10-300V, current ≤120A |
| Isolating switch measurement range | Voltage output: DC6～270V (adjustable) |
| Power output time: 0.01-20 seconds (can be set) | |
| the maximum collection time of fracture signal is 200 seconds | |
| measurable fracture closing time, opening time, three-phase different period, bounce time and frequency |
1. The appearance of the product is subject to the actual product. Technical parameters and models are subject to change without prior notice. 2. To learn more about Longdian products, please enter the product center. Service Hotline: 400-6727-238

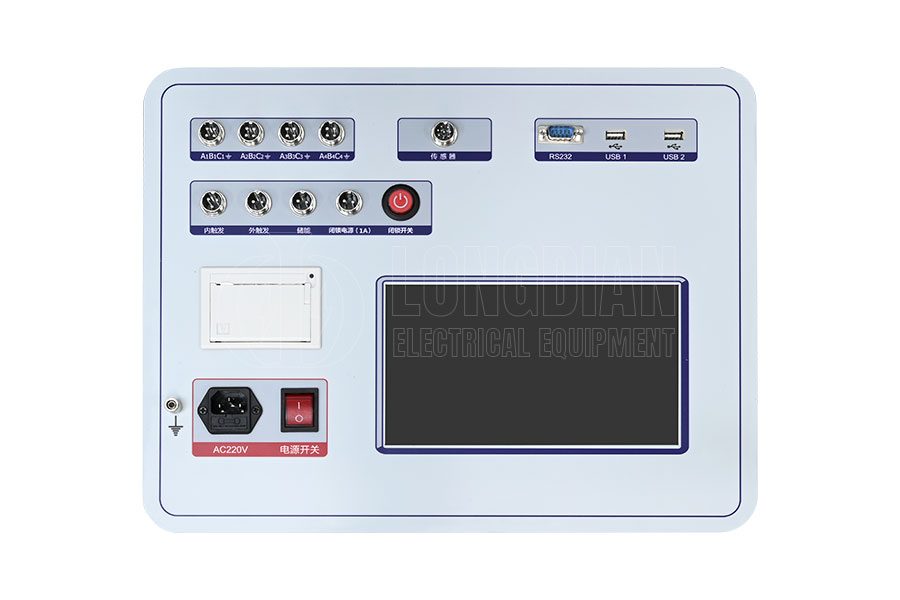

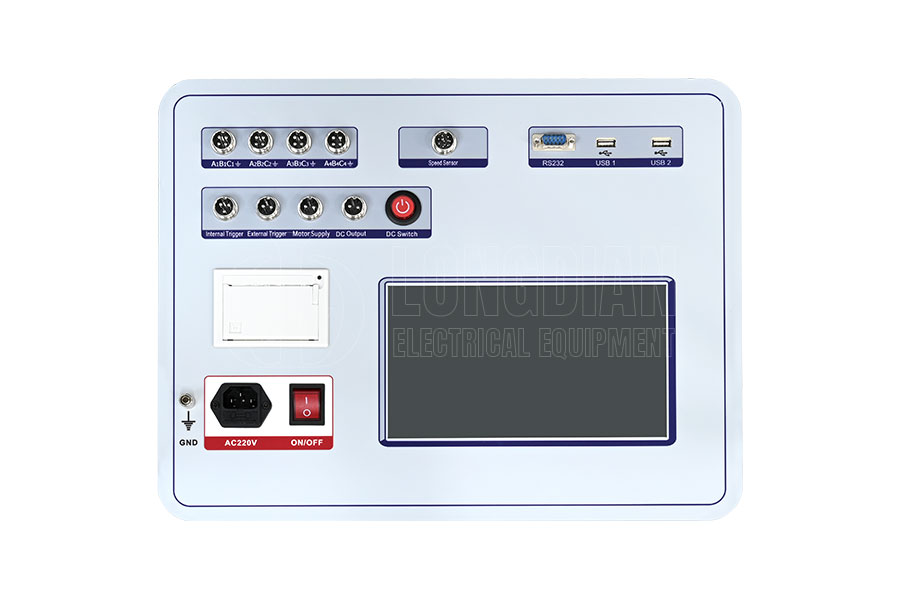

Equipped with an embedded industrial computer (Cortex-A8 processor, 1GHz main frequency), a 9-inch color touch screen, supporting Chinese and English input, and only taking 16 seconds to power on, the operation is intuitive and convenient.
Built in high-speed thermal printer, supports on-site real-time printing of test data, and improves work efficiency.
Built in DC6-270V adjustable DC power supply (maximum output 20A), can directly drive the circuit breaker to open and close, eliminating the trouble of external power supply, and supporting low voltage operation test.

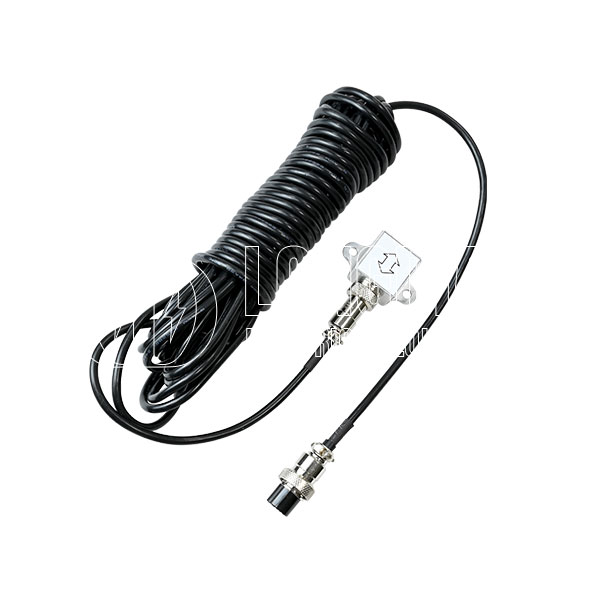

Compatible with various sensors such as linear, rotational, acceleration, laser (optional), etc., suitable for the installation requirements of various circuit breakers, with a measurement speed range covering 0.01-25.00m/s and an accuracy of ± 0.1m/s.
The time measurement resolution reaches 0.01ms, supporting synchronous testing of 12 fracture surfaces, accurately capturing parameters such as different opening and closing phases and bounce, with an error rate as low as ± 0.1ms.
The travel measurement resolution is 0.1mm, supporting complex data analysis such as overtravel and overshoot travel.
The host can store 30000 sets of data (supporting expandable storage cards), equipped with USB interface and RS232/WIFI (optional), and supports data export and remote online analysis.
Built in envelope analysis function, can generate standard curve comparison, supports switch vibration frequency diagnosis, and assists in deep fault diagnosis.
Built in anti-interference circuit, suitable for strong electromagnetic environments such as 500kV substations.
Multiple safety protection designs, including grounding protection and overload automatic power cut-off, ensure the safety of operators and equipment.
Supports three modes of internal triggering, external triggering, and manual triggering, compatible with AC/DC control circuits, meeting the needs of special scenarios such as permanent magnet switches and old low oil switches.

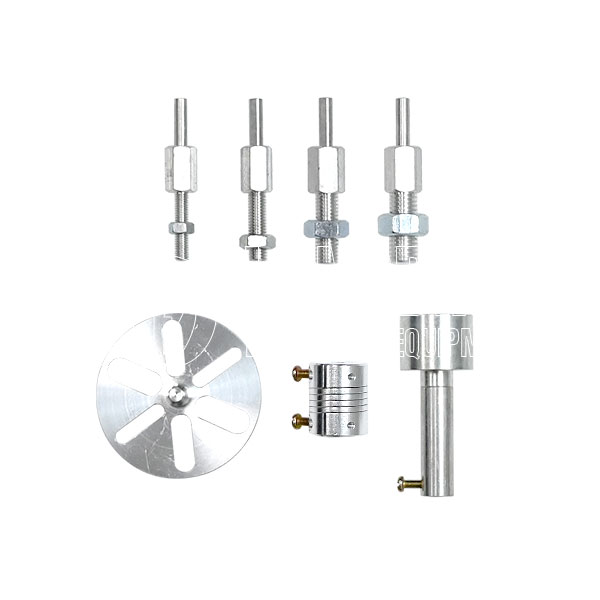

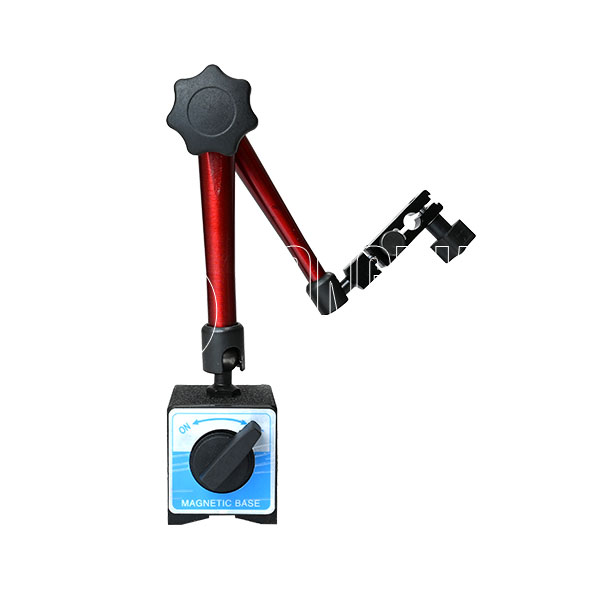

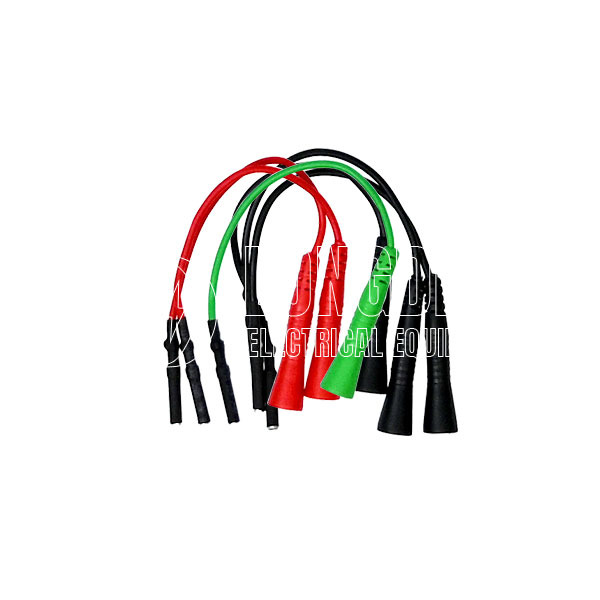

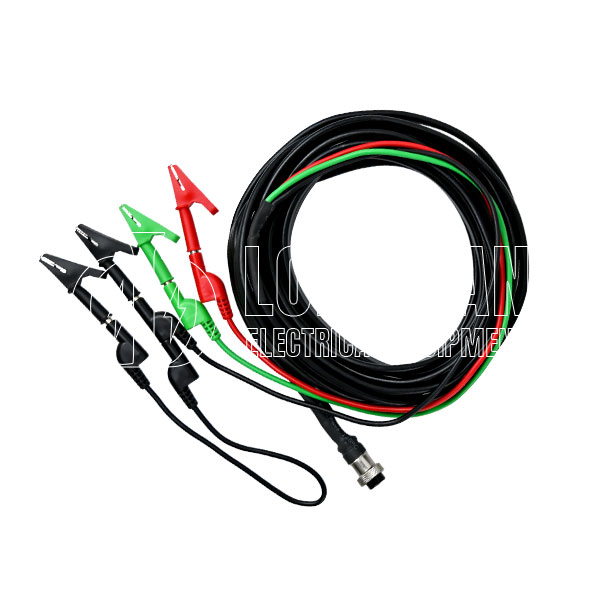

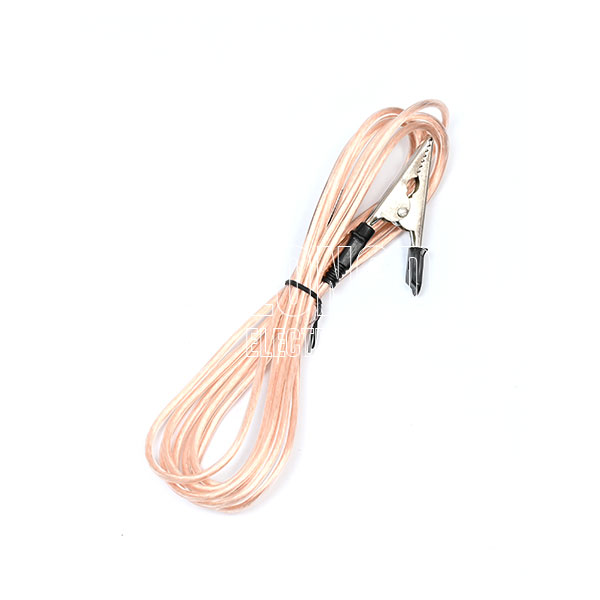

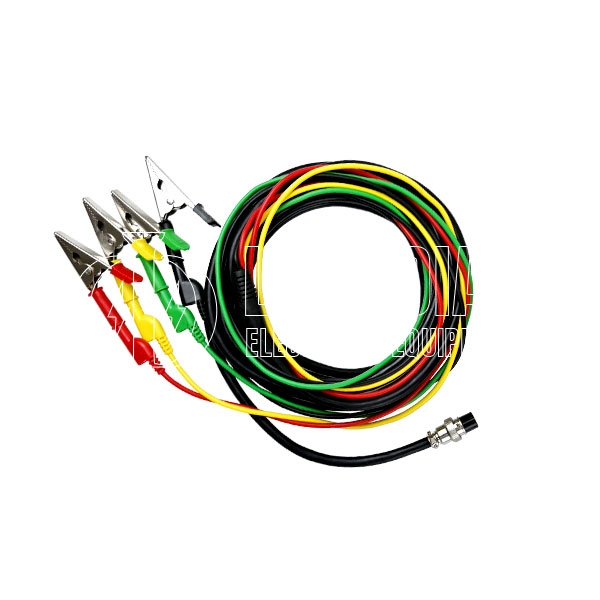

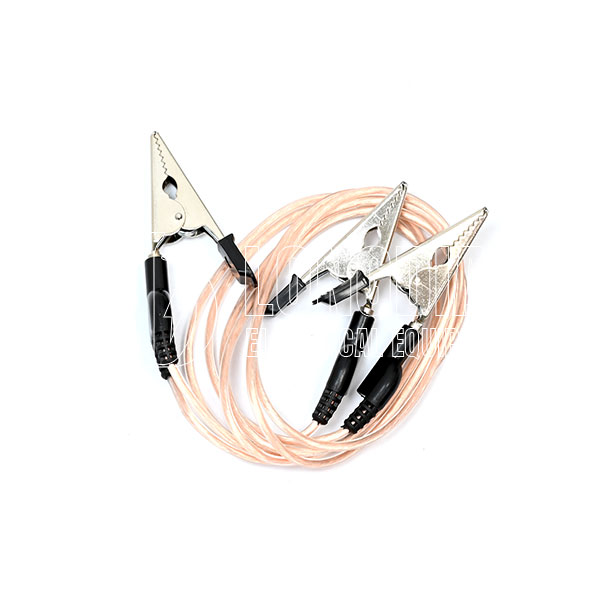

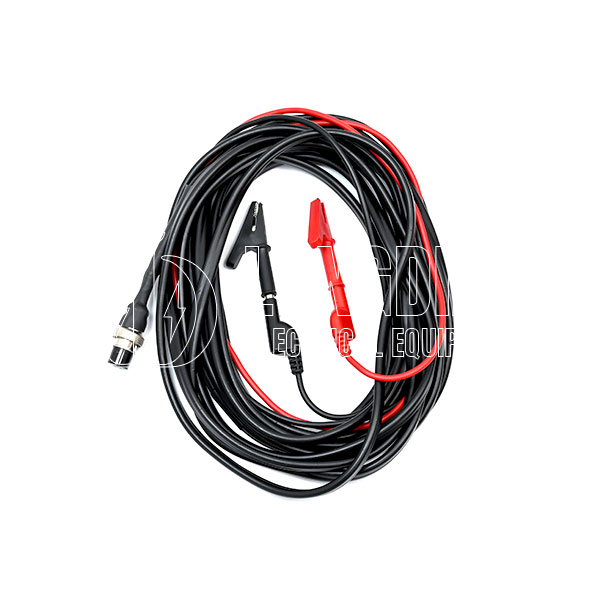

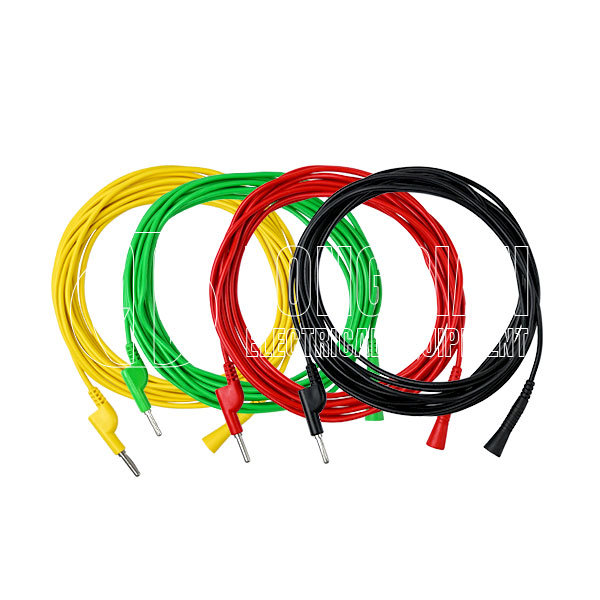

Provide a variety of sensor brackets and adapters to easily adapt to mainstream switch models such as ZN28, VS1, VD4, etc.
