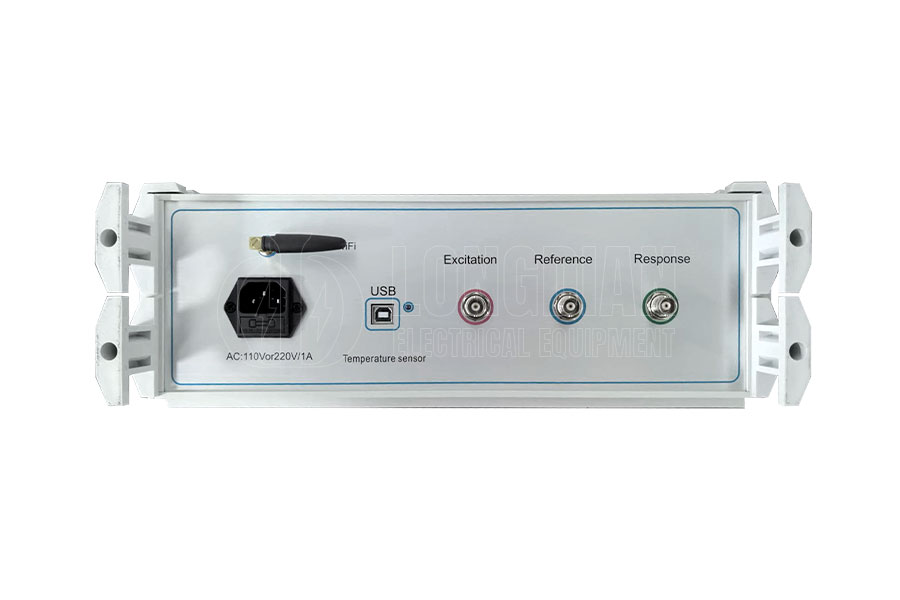

LDRZ-2001 Transformer winding deformation tester is a professional testing equipment that adopts advanced Frequency Response Analysis (FRA) technology, carefully developed by Wuhan Longdian Electrical Equipment Co., Ltd. This tester is designed specifically for detecting and analyzing the deformation of internal windings in 63kV to 500kV power transformers. By measuring the response characteristics of transformer windings at different frequencies, it can accurately determine whether the windings have twisted, bulged, shifted, tilted, inter turn short circuits, and other faults. LDRZ-2001 adopts high-speed dual channel 16 bit A/D sampling technology, combined with high-performance digital signal processing technology, to ensure the accuracy and reliability of test results. At the same time, the tester is equipped with a user-friendly interface and powerful data analysis software, making the testing process more convenient and efficient.
| Scan mode | |
| Linear scanning measurement range | (10Hz) - (10MHz) 40000 scanning point, resolution 0.25kHz, 0.5kHz and 1kHz |
| Segment frequency scanning measurement range | (0.5kHz) - (1MHz), 2000 scanning points ;(0.5kHz) - (10kHz); (10kHz) - (100kHz); (100kHz) - (500kHz); (500kHz) - (1000kHz) |
| Other technical parameters | |
| Amplitude measurement range | (-120dB) to (+20 dB) |
| Amplitude measurement accuracy | 0.1dB |
| Scanning frequency accuracy | 0.01% |
| Signal input impedance | 1MΩ |
| Signal output impedance | 50Ω |
| Signal output amplitude | ± 20V |
| Test repetition percent | 99.9% |
1. The appearance of the product is subject to the actual product. Technical parameters and models are subject to change without prior notice. 2. To learn more about Longdian products, please enter the product center. Service Hotline: 400-6727-238
High precision measurement: using DDS dedicated digital high-speed sweep technology and high-precision signal generator to ensure the accuracy and repeatability of measurement results.
Multi band sweep: Supports two measurement modes: linear sweep and segmented sweep, with a wide sweep range that can comprehensively cover the frequency response characteristics of transformer windings.
Intelligent analysis: Built in expert intelligent analysis and diagnosis system can automatically process and analyze test data, generate detailed test reports, and provide judgment basis for winding deformation degree.
Convenient operating interface: Using the Windows platform, the interface is friendly and intuitive, with easy and fast operation. It supports multiple communication methods such as USB, wireless Bluetooth, and wireless WIFI, making it easy to connect with various devices.
Powerful data storage and management: Supports large capacity data storage, automatically saves test conditions and results, and facilitates user data management and analysis.
Efficient working mode: The testing speed is fast, and the measurement time for each phase is less than 60 seconds. It takes no more than 10 minutes to measure the winding deformation of a power transformer with high, medium, and low windings, greatly improving the testing efficiency.
Comprehensive safety protection: equipped with comprehensive overvoltage, overcurrent, short circuit and other protection functions to ensure the safety and reliability of the testing process.
Widely applicable scenarios: Suitable for deformation testing of various types of power transformer windings, including oil immersed transformers, dry-type transformers, etc., providing strong guarantees for the safe operation of power systems.
