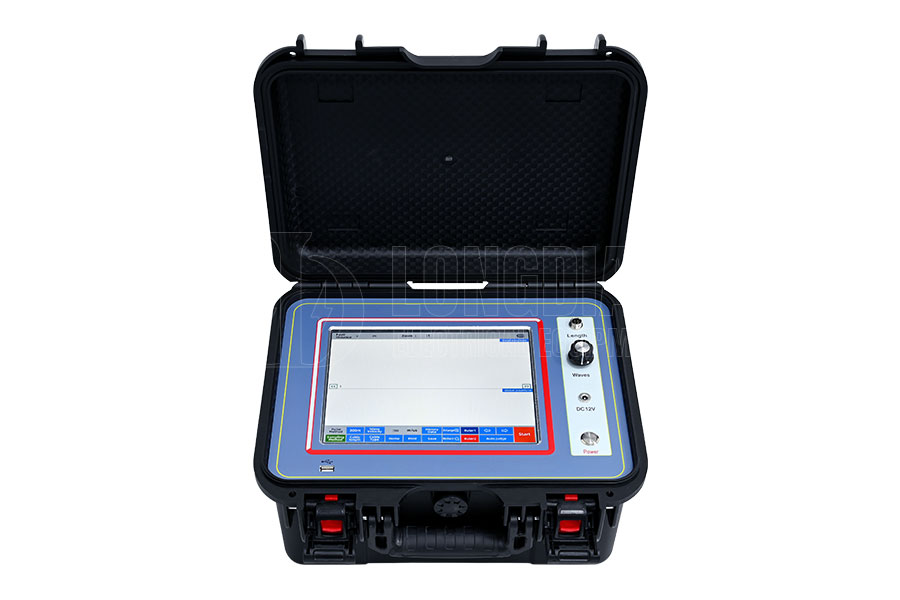

The LD-2003 intelligent cable fault tester is a high-end integrated equipment designed specifically for fault detection of various types of cables such as power cables, railway signal cables, and street light cables. This product strictly follows the standards of the power industry and integrates distance measurement, path detection, and fault location functions. With advanced technology and user-friendly design, it can quickly and accurately detect and locate cable open circuits, short circuits, high resistance leaks, and flashover faults. It is suitable for cable detection needs of different levels and media below 110kV.
| Sampling method | low voltage pulse method, impact flashover method |
| Cable length | 50m, 300m, 1km, 2km, 5km, 10km, 30km, 60km |
| Wave speed setting | cross-linked ethylene, PVC, oil-impregnated paper, non-dripping oil and unknown type self-setting |
| Impact high voltage | 35kV and below |
| Test distance | < 60km |
| Resolution ratio | 1m |
| Test accuracy | 1m |
| Display mode | industrial grade 10.4 inch color touch LCD screen |
| Operation mode | touch screen operation, physical knob operation |
| Analysis Settings | Scroll, zoom, save, call out, wave shift and other functions |
| Power supply | built-in battery power supply |
| Continuous operation | > 4h (external power supply can also be used) |
| Storage function | with data storage function, can store a large number of field waveform and data, and call out at any time |
| Waveform analysis | all high resistance fault waveforms only show the characteristics of short circuit fault waveforms of low voltage pulse method, which is convenient to analyze the jamming position |
| Waveform processing | the measured fault point waveform and the full length open circuit waveform of the good phase can be displayed on the screen at the same time for comparison with the screen and superposition comparison, can automatically judge the fault distance |
1. The appearance of the product is subject to the actual product. Technical parameters and models are subject to change without prior notice. 2. To learn more about Longdian products, please enter the product center. Service Hotline: 400-6727-238
Adopting a 10.4-inch industrial grade color touch screen and a menu style operation interface, it supports waveform scaling, storage, retrieval, and automatic distance detection functions, making it easy for non professionals to quickly get started.

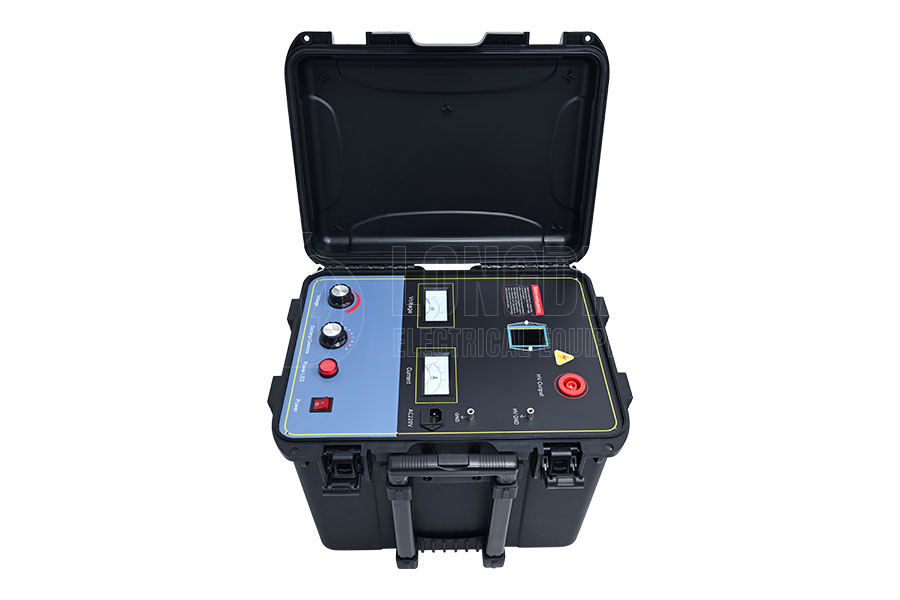

Integrating 7 testing methods including low-voltage pulse method, impulse flashover method, and triple pulse method, covering various scenarios such as cable breakage, short circuit, and high resistance faults, with a testing accuracy of ± 1 meter and a maximum ranging range of 60 kilometers.
Powered by a built-in battery, it can work continuously for more than 4 hours without an external power source, meeting the needs of complex outdoor environments.

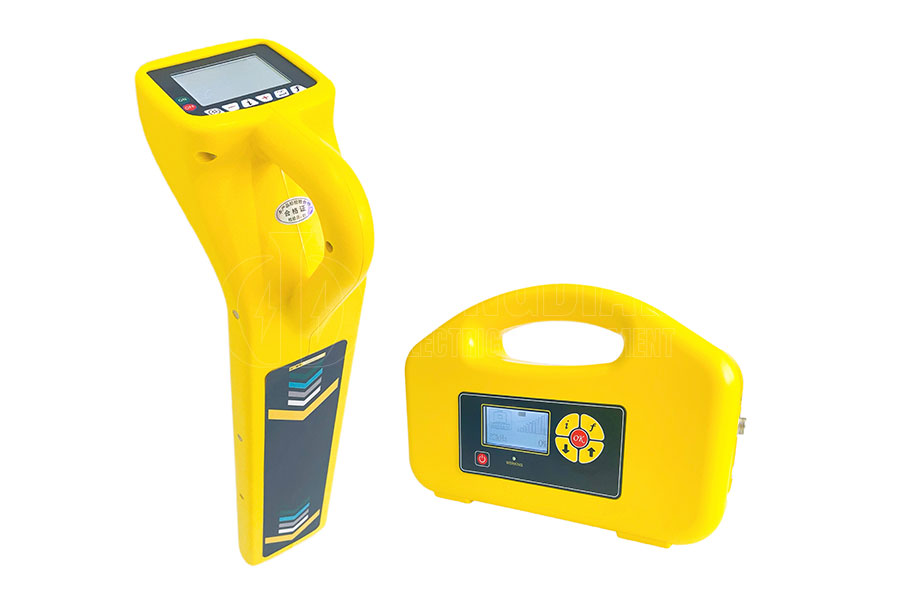

The acoustic magnetic digital synchronous fixed-point instrument combines the electromagnetic wave and sound wave time difference algorithm, and displays the real-time distance of the fault point (0.1-99.9 meters) through the digital screen, effectively eliminating environmental noise interference, with a fixed-point error of less than 0.1 meters.
Supports synchronous detection of sound and magnetic fields, equipped with multiple filtering modes including high pass, low-pass, and band-pass, suitable for different scenarios such as hard road surfaces and soft soil, greatly improving detection efficiency in complex environments.
Built in high-voltage protection mechanism to prevent equipment damage during impact flashover testing, and equipped with safety warning function to prohibit use in high gas and flammable environments, ensuring operational safety.

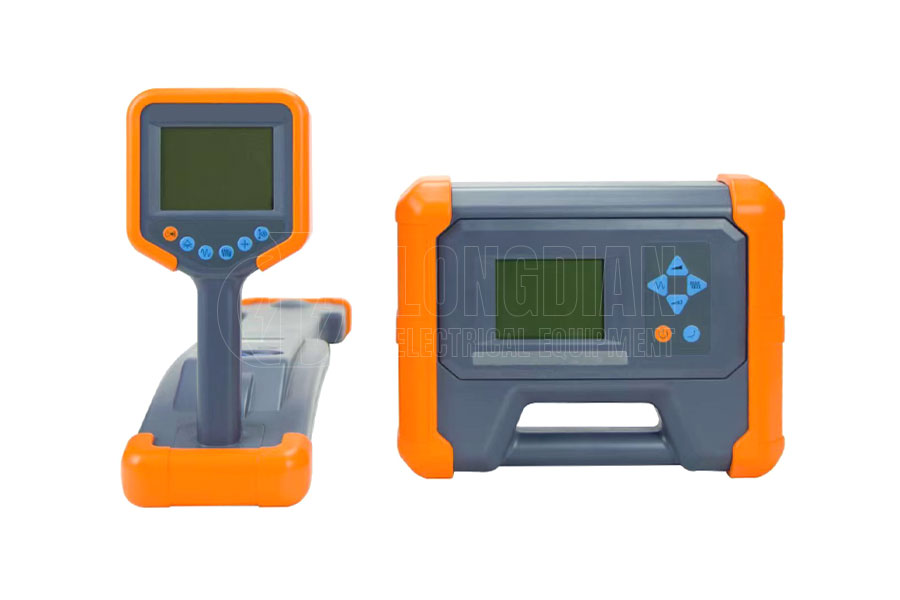

The path detection module can accurately determine the cable burial path and depth, and with the help of a fault locator, achieve a closed-loop process of "rough measurement path precise positioning", significantly reducing the time for fault diagnosis.
