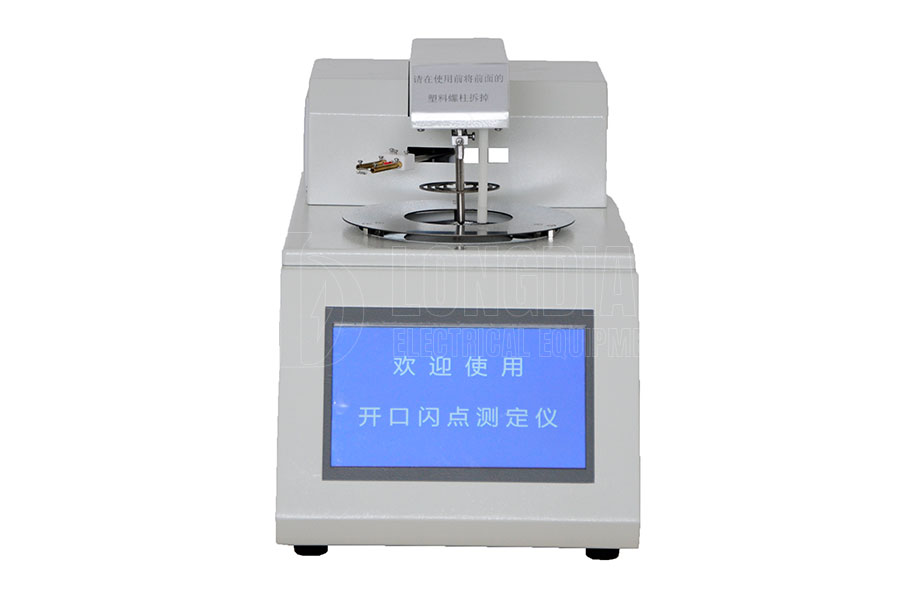

LDKS502 Automatic Open Flash Point Tester Instruction Manual is a high-performance instrument designed for measuring the open-mouth flash point value of petroleum products. The instrument uses electric ignition and does not require any flammable gas. It is an ideal choice for industries such as petroleum, electricity, chemical industry, and commodity inspection to replace imported products.
| Test range | 40℃~400℃ |
| Test type | Open flash point |
| Temperature detection | Platinum resistance |
| Accuracy | ±1℃ |
| Display | 7-inch touch screen and colorful LCD |
| Information storage | 1000 test results can be stored |
| Ignition method | Electronic ignition |
| Cooling method | Forced air cooling |
| Atmospheric pressure | Automatic detection of atmospheric pressure, automatic correction of test results |
| Power | ≤600VA |
| Power supply | (AC) 220V±11V，frequency: 50Hz±2.5Hz |
1. The appearance of the product is subject to the actual product. Technical parameters and models are subject to change without prior notice. 2. To learn more about Longdian products, please enter the product center. Service Hotline: 400-6727-238
High precision and stability: The ARM series high-performance microprocessor is used, combined with the electrically erasable memory, to ensure high precision and stability of the measurement. Its temperature error is controlled within ±1℃, and the resolution is 0.1℃, which can meet the needs of accurate determination of flash point value.
Highly automated: The instrument has a highly automated test process, which can automatically complete the steps of heating, ignition, flash point detection, cooling and data recording, greatly improving work efficiency and test accuracy.
Large-capacity data storage: The instrument has a built-in electrically erasable memory, which can store thousands of data records, making it convenient for users to check and analyze historical data. At the same time, the instrument is also equipped with a dot matrix thermal printer, which can print test results instantly, making it convenient for users to record and archive.
Friendly humanized interface: It uses a 7-inch color LCD display and touch screen, full Chinese character input, and a friendly and intuitive interface, which is convenient for users to operate and set parameters. The instrument also supports a clock chip, which can automatically display the current date and time, providing users with a more convenient use experience.
Powerful self-check function: The instrument has a powerful self-check function, which can self-check key components such as the lifting rod, sweeping rod, ignition device, etc. to ensure the normal operation of the instrument and the accuracy of the test results. At the same time, the instrument also has the function of automatically stopping detection and alarming when the temperature exceeds the value, which effectively ensures the safety of users.
